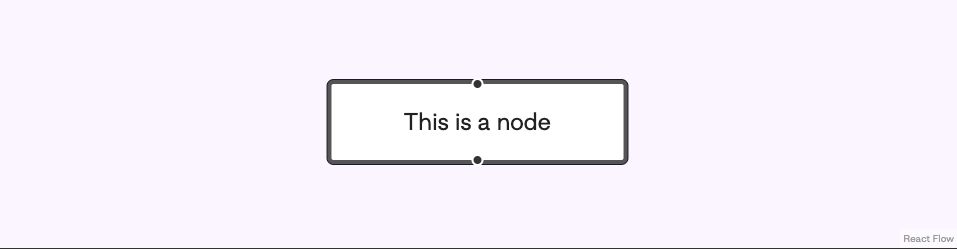

React Flow Node

It is an element that you can connect to via edges. They are positioned on the viewport using x and y coords and are positioned relatively to where the middle of the viewport is. You can connect to React Flow Nodes by using handlers.

Documentation

Custom Nodes

You can (and probably should) build custom nodes as the one provided by default are too simple for more advanced use-cases. The most common use-cases are:

• Multiple handles with different outputs
• Data Visualisation
• Form elements

Example

// textUpdaterNode.tsx
import { Handle, NodeProps, Position } from '@xyflow/react';
import { TextUpdatedNode } from './types';

export function TextUpdaterNode({
	data,
	isConnectable,
}: NodeProps<TextUpdatedNode>) {
	const onChange = (e: React.ChangeEvent<HTMLInputElement>) => {
		console.log(e.target.value);
	};

	console.log({ data });

	return (
		<div className="p-5 bg-white rounded border">
			<Handle
				type="target"
				id="a"
				position={Position.Top}
				isConnectable={isConnectable}
			/>
			<div>
				<label htmlFor="text">Text:</label>
				<input
					type="text"
					id="text"
					name="text"
					onChange={onChange}
					className="nodrag"
				/>
			</div>
			<Handle
				type="source"
				position={Position.Bottom}
				id="b"
				isConnectable={isConnectable}
			/>
			<Handle
				isConnectable={isConnectable}
				id="a"
				type="source"
				position={Position.Bottom}
				style={{ left: 10 }}
			/>
		</div>
	);
}

// types.ts
import type { Node, BuiltInNode } from '@xyflow/react';

export type PositionLoggerNode = Node<{ label: string }, 'position-logger'>;
export type TextUpdatedNode = Node<{ label: string }, 'text-updater'>;

export type CustomNodes = TextUpdatedNode | PositionLoggerNode;
export type AppNode = BuiltInNode | CustomNodes;

// index.ts
import type { NodeTypes } from '@xyflow/react';

import { AppNode } from './types';
import { TextUpdaterNode } from './textUpdaterNode';

export const nodeTypes = {
	'text-updater': TextUpdaterNode,
} satisfies NodeTypes;

// App.tsx

const initialNodes: AppNode[] = [
	{
		id: 'node-3',
		position: { x: 0, y: 200 },
		data: { label: 'hello' },
		type: 'text-updater',
	},
];
